Kaneiko 1:5 electric contra-angle handpieces are speed-increasing rotary instruments designed for high-speed crown preparation, cavity preparation, restorative material removal and prosthodontic procedures. Their 1:5 gear transmission multiplies the speed produced by a compatible electric micromotor by five, providing controlled high-speed cutting with FG friction-grip burs.

Unlike an air turbine handpiece, a 1:5 electric contra-angle is driven by an electric micromotor. This system provides stable rotational performance and controlled power delivery across different cutting loads, making it suitable for clinicians who prefer an electric high-speed handpiece for routine restorative workflows.

The Kaneiko collection includes the 1:5 Speed-Increasing Electric Contra-Angle Handpiece for FG Burs in two configurations. Model EB1L features three-point internal water spray for chairside and general use, while Model E1L-X features single-point external water spray for compatible motor and MOS setups.

Both models accept FG dental burs with a standard Ø1.6 mm shank and include fibre-optic light transmission, ceramic bearings, a push-button chuck, Clean Head System and Anti-Heat System.

Introducing 1:5 Electric Contra-Angle Handpieces in Clinical Dentistry

A 1:5 electric contra-angle handpiece is used when high rotational speed is required from an electric micromotor system. The internal gear mechanism multiplies the motor input speed, allowing the handpiece to perform procedures commonly completed with high-speed FG burs.

The Kaneiko handpiece has a specified maximum micromotor input speed of 33,000 rpm. At this input speed, the 1:5 transmission produces a nominal maximum bur speed of approximately 165,000 rpm. The motor input limit should not be exceeded.

Electric contra-angle systems are valued for their controlled speed delivery and stable cutting performance. Their angled head also supports intraoral access during crown preparation, cavity preparation and restorative adjustment, particularly in posterior treatment areas.

Clinical performance depends on more than the gear ratio. Bearing stability, water spray coverage, bur retention, motor compatibility, illumination and correct operating speed all influence cutting efficiency and long-term reliability.

What Are 1:5 Electric Contra-Angle Handpieces Used For?

Crown and Bridge Preparation
Supports anatomical tooth reduction, axial preparation, occlusal clearance and margin development using suitable FG diamond burs.

Cavity Preparation
Provides controlled high-speed rotation for cavity access, caries removal and preparation of tooth structure for restorative treatment.

Removal of Existing Restorations
Suitable for cutting and removing composite, temporary restorative materials and selected existing restorations with compatible FG burs.

Veneer Preparation
Supports controlled enamel reduction, depth-guided preparation and refinement of veneer margins.

Inlay and Onlay Preparation
Used for cavity refinement, wall preparation, margin finishing and removal of unsupported tooth structure.

Restoration Contouring and Adjustment
Provides stable FG bur rotation for adjusting restorative contours and refining preparation surfaces.

Preparation Margin Refinement
Supports precise finishing of crown, veneer, inlay and onlay preparation margins.

Kaneiko 1:5 Electric Contra-Angle Handpieces: Engineered for Controlled High-Speed Cutting

Kaneiko speed-increasing electric contra-angle handpieces are designed around the clinical requirements of electric high-speed preparation: stable gear transmission, effective water cooling, clear illumination and secure FG bur retention.

Key design priorities include:

• 1:5 speed-increasing gear transmission
• Maximum micromotor input speed of 33,000 rpm
• Nominal bur speed of up to approximately 165,000 rpm
• FG friction-grip bur compatibility
• Standard Ø1.6 mm bur shank acceptance
• Fibre-optic light transmission
• Ceramic bearings for stable rotation
• Push-button bur changing system
• Internal and external water spray options
• Clean Head and Anti-Heat Systems

These features support controlled preparation while allowing clinics to select the water-delivery system and body configuration that best match their electric micromotor setup.

Model Comparison

Model EB1L with Three-Point Internal Water Spray

Model EB1L is designed for chairside and general restorative use. Its three-point internal water spray delivers cooling water through channels inside the contra-angle handpiece and distributes it around the FG bur.

The integrated water pathway supports consistent cooling, debris removal and visibility without requiring an external spray pipe. This creates a cleaner chairside configuration for crown preparation, cavity preparation and routine restorative procedures.

Model EB1L features a Black Nano Titanium body, fibre-optic light transmission, ceramic bearing, push-button chuck, Clean Head System and Anti-Heat System.

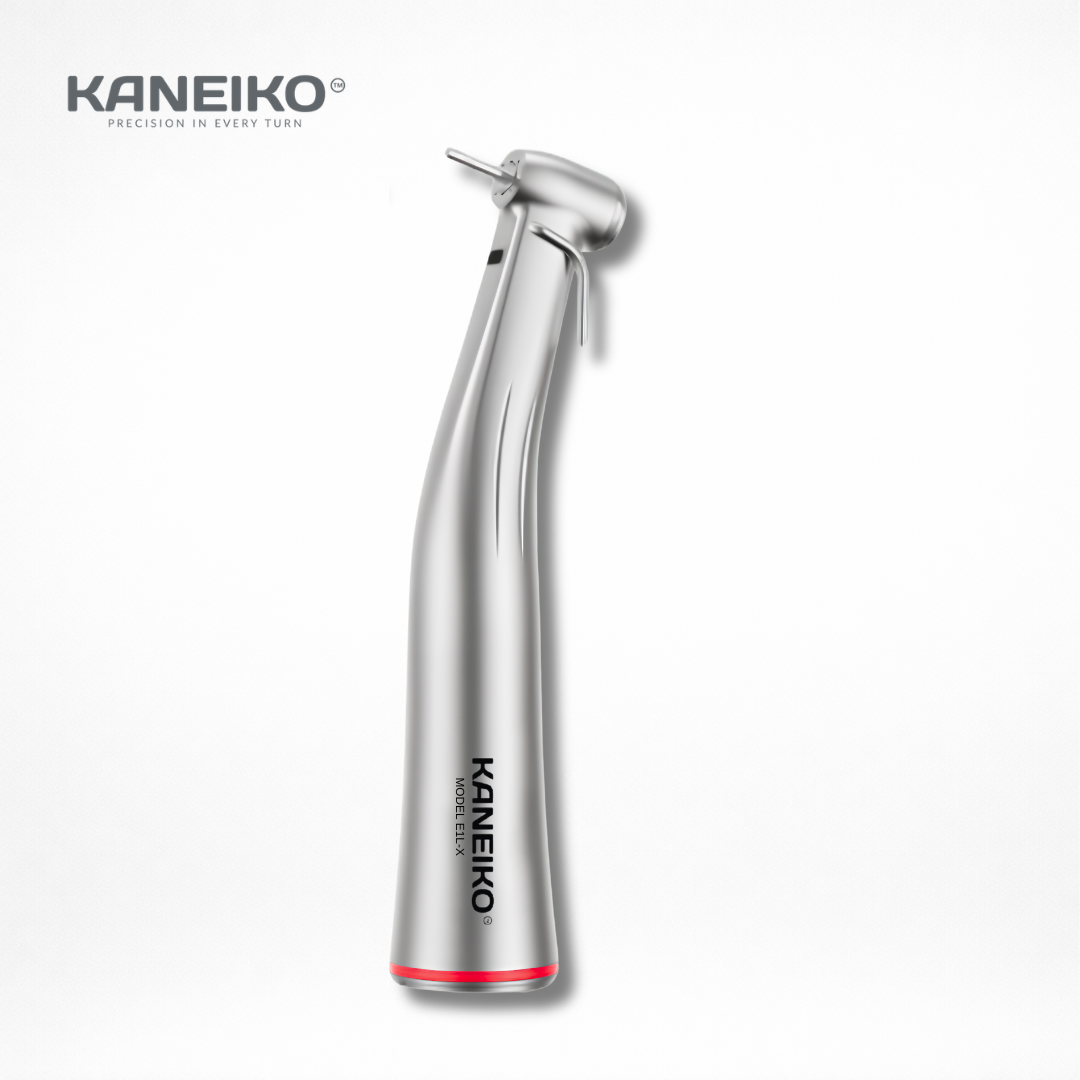

Model E1L-X with Single-Point External Water Spray

Model E1L-X uses a single-point external water spray pipe that directs cooling water toward the FG bur and preparation surface. This version is intended for compatible motor and MOS setups requiring an external water-delivery configuration.

The position of the external spray pipe should be checked before operation to confirm that cooling water reaches the working end of the bur effectively.

Model E1L-X features a stainless steel body, fibre-optic light transmission, ceramic bearing, push-button chuck, Clean Head System and Anti-Heat System.

Clinical Benefits

Controlled Electric Cutting Performance
The 1:5 transmission converts electric micromotor speed into high-speed FG bur rotation for restorative and prosthodontic preparation.

Stable Rotation Under Cutting Load
Electric micromotor drive and ceramic bearings support smooth and controlled bur movement across different preparation tasks.

Internal and External Cooling Options
Clinicians can select three-point internal spray or single-point external spray according to the intended motor and water-delivery setup.

Fibre-Optic Visibility
Light transmission from a compatible electric micromotor supports visibility around the bur and preparation margin.

Convenient Bur Changes
The push-button chuck allows FG burs to be inserted and removed without a separate bur-changing tool.

Versatile Restorative Applications
Suitable for crown preparation, cavity preparation, veneers, inlays, onlays and removal of restorative materials.

Buying Considerations

• Confirm compatibility with the intended electric micromotor
• Do not exceed the maximum micromotor input speed of 33,000 rpm
• Select internal or external water spray according to the clinical setup
• Confirm that the micromotor supports fibre-optic light transmission
• Use only FG burs with a standard Ø1.6 mm shank
• Choose burs approved for the selected output speed
• Check the connection and water-delivery configuration before purchase
• Consider body material, handling balance and maintenance requirements
• Confirm access to replacement rotors, cartridges and servicing support

The correct model should be selected according to the electric micromotor system and irrigation configuration rather than appearance alone.

How to Choose the Right 1:5 Electric Contra-Angle Handpiece

Choose Model EB1L for Internal Water Delivery
Select EB1L for chairside and general use when the electric system supports internal water delivery through the handpiece.

Choose Model E1L-X for External Water Delivery
Select E1L-X for compatible motor and MOS setups where an external spray pipe is required.

Confirm Electric Micromotor Compatibility
Check the physical connection, maximum motor speed, fibre-optic capability and water-delivery system before ordering.

Confirm the Required Clinical Procedure
A 1:5 electric contra-angle is suitable for high-speed restorative and prosthodontic preparation. It is not a substitute for a 20:1 implant contra-angle used for implant placement.

Select the Correct FG Bur
Use a compatible Ø1.6 mm FG diamond or carbide bur approved for the required rotational speed and clinical application.

Important Motor Speed Limit

The Kaneiko 1:5 electric contra-angle handpiece must not be operated with a micromotor input speed above 33,000 rpm.

The gear system multiplies the motor input speed by five. At 30,000 rpm motor input, the nominal bur speed is approximately 150,000 rpm. At the maximum permitted input of 33,000 rpm, the nominal bur speed is approximately 165,000 rpm.

Operating the micromotor above the specified limit may exceed the recommended operating range of the contra-angle handpiece. Confirm the motor setting before each procedure.

FG Bur Compatibility

Model EB1L and Model E1L-X accept FG friction-grip burs with a standard Ø1.6 mm shank. FG burs are commonly available in diamond and carbide configurations for crown preparation, cavity preparation, restoration removal and finishing.

FG burs should not be confused with Ø2.35 mm RA latch-type burs used in 1:1 low-speed contra-angle handpieces or HP burs used in straight handpieces.

To understand the differences between rotary-instrument systems, read the FG, RA and HP Bur Compatibility Guide for Dental Handpieces .

Always inspect the bur before use. A bent, worn or incorrectly inserted bur may increase vibration, reduce preparation accuracy and place unnecessary stress on the chuck and bearing.

Internal vs External Water Spray

Model EB1L uses three-point internal water spray delivered through the body of the handpiece. Water is distributed around the FG bur from multiple points to support cooling and debris removal.

Model E1L-X uses a single-point external spray pipe. This allows water to be directed toward the bur and preparation area from outside the handpiece body.

The selected water-spray system must match the configuration of the electric micromotor and dental unit. Before treatment, confirm that water reaches the working end of the bur.

Fibre-Optic Light Transmission

Both models feature fibre-optic light transmission. Illumination is carried from a compatible electric micromotor through the handpiece toward the treatment area.

Fibre-optic visibility can support accurate bur positioning, margin preparation and restorative work in posterior or restricted areas. The connected micromotor must support light transmission for this feature to function.

Electric Micromotor Compatibility

A 1:5 speed-increasing contra-angle must be used with a compatible electric micromotor and connection system. Before purchase, verify the connection type, motor speed range, light transmission and water-delivery configuration.

The micromotor should provide controllable speed settings so the maximum input limit of 33,000 rpm can be maintained. The handpiece should not be connected to an incompatible motor or operated beyond its specified range.

Maintenance and Sterilisation

Proper maintenance supports smooth gear transmission, bearing stability, chuck retention and water spray performance. After use, remove the FG bur, clean the handpiece exterior and flush the water pathway according to the product instructions.

Lubricate the handpiece through the correct connection or maintenance adaptor when required. Operate it briefly to distribute the lubricant and remove excess oil before sterilisation.

Inspect the push-button chuck, spray outlets and bearing movement regularly. Increased noise, vibration, heat, reduced speed or loose bur retention may indicate that servicing is required.

Read the Kaneiko Dental Handpiece Maintenance Guide for further cleaning, lubrication, sterilisation and storage guidance.

Professional Insight

In clinical practice, a 1:5 electric contra-angle is selected when dentists want high-speed cutting with the controlled power delivery of an electric micromotor system.

Model selection should begin with the water-delivery configuration. EB1L provides an integrated three-point internal spray for general chairside procedures, while E1L-X provides external irrigation for compatible motor and MOS setups.

The operating limit is equally important. Although many 1:5 handpieces are commonly associated with 200,000 rpm, this Kaneiko model has a specified maximum motor input of 33,000 rpm, producing a nominal maximum output of approximately 165,000 rpm.

Reliable clinical performance also depends on the condition of the FG bur, correct motor setting, adequate cooling and regular maintenance. Excessive pressure should not be used to compensate for a worn bur or poorly maintained handpiece.

Benefits of Using Kaneiko 1:5 Electric Contra-Angle Handpieces

• Deliver controlled high-speed cutting from an electric micromotor
• Support crown, cavity, veneer, inlay and onlay preparation
• Accept standard Ø1.6 mm FG friction-grip burs
• Provide three-point internal or single-point external water spray
• Improve treatment visibility through fibre-optic light transmission
• Support smooth rotation with ceramic bearing systems
• Provide convenient FG bur changes through a push-button chuck
• Offer chairside, general, motor and MOS configurations
• Support stable preparation and restorative material removal
• Provide model options for different electric micromotor setups

Frequently Asked Questions

1. What is a 1:5 electric contra-angle handpiece?
It is a speed-increasing handpiece that multiplies the input speed from a compatible electric micromotor by five.

2. What is the maximum speed of this Kaneiko 1:5 handpiece?
The maximum permitted micromotor input is 33,000 rpm, producing a nominal maximum bur speed of approximately 165,000 rpm.

3. Can I run the motor at 40,000 rpm?
No. The motor input speed for this handpiece must not exceed 33,000 rpm.

4. What burs are compatible with the handpiece?
Model EB1L and Model E1L-X accept FG friction-grip burs with a standard Ø1.6 mm shank.

5. What is the difference between EB1L and E1L-X?
EB1L has a Black Nano Titanium body and three-point internal water spray. E1L-X has a stainless steel body and single-point external water spray.

6. Which model is suitable for general chairside use?
Model EB1L is designed for chairside and general use with internal water delivery.

7. Which model is suitable for external water delivery?
Model E1L-X is designed for compatible motor and MOS setups requiring a single-point external spray.

8. Does the handpiece include fibre-optic illumination?
Yes. Both models transmit light from a compatible fibre-optic electric micromotor toward the treatment area.

9. Can a 1:5 handpiece be used for implant placement?
No. Implant placement normally requires a dedicated 20:1 speed-reducing implant contra-angle and a compatible implant motor with torque control.

10. How should the handpiece be maintained?
Remove the bur, clean the exterior, flush the water pathway, lubricate according to the instructions, inspect the chuck and spray outlets, sterilise correctly and allow the handpiece to dry before storage.
