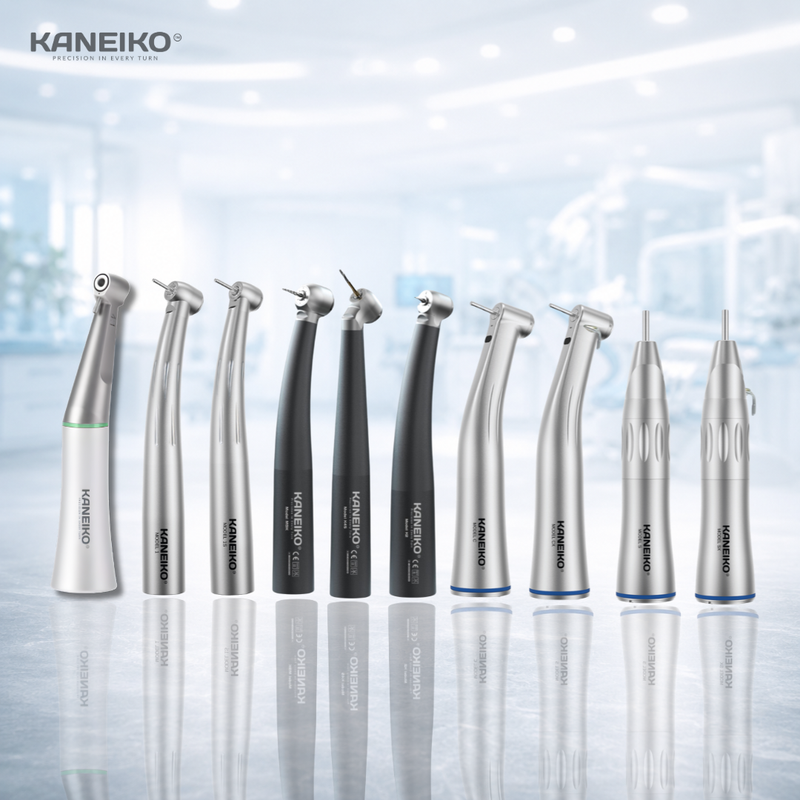

Professional Dental Handpiece Systems

Kaneiko offers dental handpieces and accessories for high-speed cutting, low-speed finishing, electric restorative preparation, surgical access, implant placement and specialised reciprocating procedures.

Integrated High-Speed Dental Handpieces

Kaneiko integrated high-speed handpieces use a fixed M4 bottom connection and are designed as economical air-turbine instruments for routine restorative procedures.

These handpieces may be used for:

• Crown and bridge preparation

• Cavity preparation

• Veneer preparation

• Restorative cutting

• Composite removal

• General operative dentistry


Selected models include LED illumination, multi-port water spray and push-button bur retention.

Kaneiko integrated high-speed handpieces are non-serviceable instruments. They should not be lubricated, dismantled or internally repaired. When an integrated handpiece develops a functional fault, clinical use should be discontinued and the handpiece should be replaced.

High-Speed Dental Handpieces

Kaneiko high-speed dental handpieces are designed for use with compatible quick-coupling systems. The range includes standard-head, super-mini, high-torque and surgical configurations for different clinical access and cutting requirements.

Depending on the model, applications may include:

• Full-crown preparation

• Crown and bridge procedures

• Veneer preparation

• Cavity access

• Removal of restorative materials

• Sectioning and controlled surgical cutting

• Procedures requiring fibre-optic visibility and multi-port water cooling


Selected models are available for coupling systems compatible with KaVo®, NSK®, Bien-Air®, Sirona® and W&H® connections.

1:1 Contra-Angle Handpieces

Kaneiko 1:1 contra-angle handpieces provide direct-drive low-speed rotation when connected to a compatible E-type dental air motor or micromotor.

They are suitable for procedures such as:

• Finishing and polishing

• Prophylaxis

• Composite adjustment

• Trimming

• Removal of temporary restorative materials

• Low-speed restorative procedures

• Use with compatible CA burs and polishing instruments


Available configurations vary in lighting, irrigation, chuck design and clinical indication.

Straight Handpieces

Kaneiko straight handpieces are designed for compatible E-type motors and support clinical and laboratory procedures requiring direct access and controlled low-speed rotation.

Common applications include:

• Denture adjustment

• Acrylic trimming

• Prosthetic finishing

• Laboratory polishing

• Extraoral adjustment

• Use with compatible HP burs and rotary instruments


The selected bur type, motor speed and intended procedure should always match the handpiece specification.

1:5 Electric Contra-Angle Handpieces

Kaneiko 1:5 electric contra-angle handpieces increase the rotational speed supplied by a compatible electric micromotor.

They are designed for controlled restorative preparation and finishing procedures, including:

• Crown preparation

• Veneer preparation

• Cavity preparation

• Restorative cutting

• Finishing of indirect restorations

• Procedures requiring stable electric-motor performance


Internal-water and external-water configurations are available depending on the model. The operating speed should follow the limits stated on the individual product page.

1:4:2 Surgical Contra-Angle Handpieces

Kaneiko 1:4:2 surgical contra-angle handpieces are designed for surgical access and controlled cutting with compatible surgical systems.

Depending on the model, they may support:

• Oral surgery

• Bone-related procedures

• Surgical tooth sectioning

• Procedures requiring internal or external irrigation

• Access in posterior or restricted treatment areas


Sterile irrigation and the correct surgical bur must be selected according to the procedure and handpiece instructions.

20:1 Implant Contra-Angle Handpieces

Kaneiko 20:1 implant contra-angle handpieces provide low-speed, high-torque performance for implantology workflows.

They are intended for use with compatible implant motors and may support:

• Implant-site preparation

• Implant placement

• Controlled drilling sequences

• Procedures requiring internal and external irrigation

• Low-speed implant-related surgical workflows


Selected models provide torque capacity of up to 80 Ncm and a maximum rotational speed of up to 2,000 min⁻¹. Clinicians should follow the implant-system protocol, motor settings and bur or drill manufacturer instructions.

4:1 Reciprocating Contra-Angle Handpieces

Kaneiko 4:1 reciprocating contra-angle handpieces convert motor rotation into controlled reciprocating movement.

They are designed for use with compatible reciprocating instruments in procedures such as:

• Interproximal reduction

• Contact-area finishing

• Orthodontic refinement

• Controlled enamel reduction

• Polishing and contour correction


The selected strip, file or reciprocating instrument must be compatible with the handpiece system and intended clinical procedure.

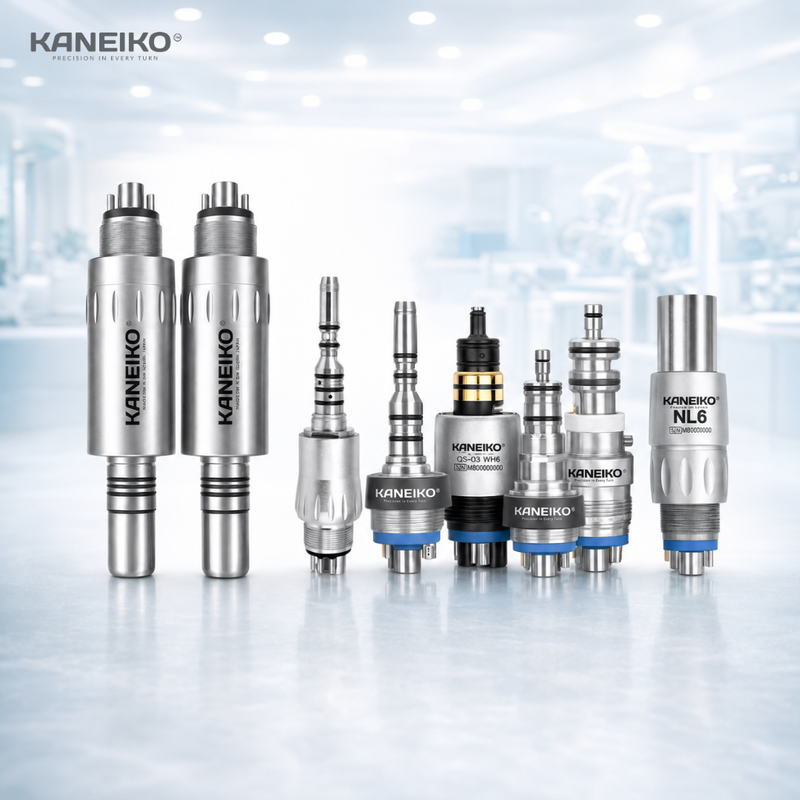

Dental Quick Couplings

Kaneiko dental quick couplings provide the connection between compatible high-speed handpieces and the dental unit hose.

Available configurations include systems compatible with:

• KaVo®

• NSK®

• Bien-Air®

• Sirona®

• W&H®


Depending on the coupling model, functions may include air transmission, water delivery, exhaust management and fibre-optic light transfer.

Before purchasing, dentists should verify the handpiece connection, hose configuration, number of holes and lighting requirements. A coupling that looks similar may not be mechanically or functionally compatible with another system.

Dental Air Motors

Kaneiko dental air motors power compatible low-speed contra-angle and straight handpieces.

Selected models provide:

• Forward and reverse rotation

• Fibre-optic light transmission

• Adjustable operating control

• Compatibility with low-speed contra-angle and straight handpieces


Dental air motors are suitable for finishing, polishing, trimming and other low-speed procedures. Electric contra-angle handpieces should instead be connected to a compatible electric micromotor system.

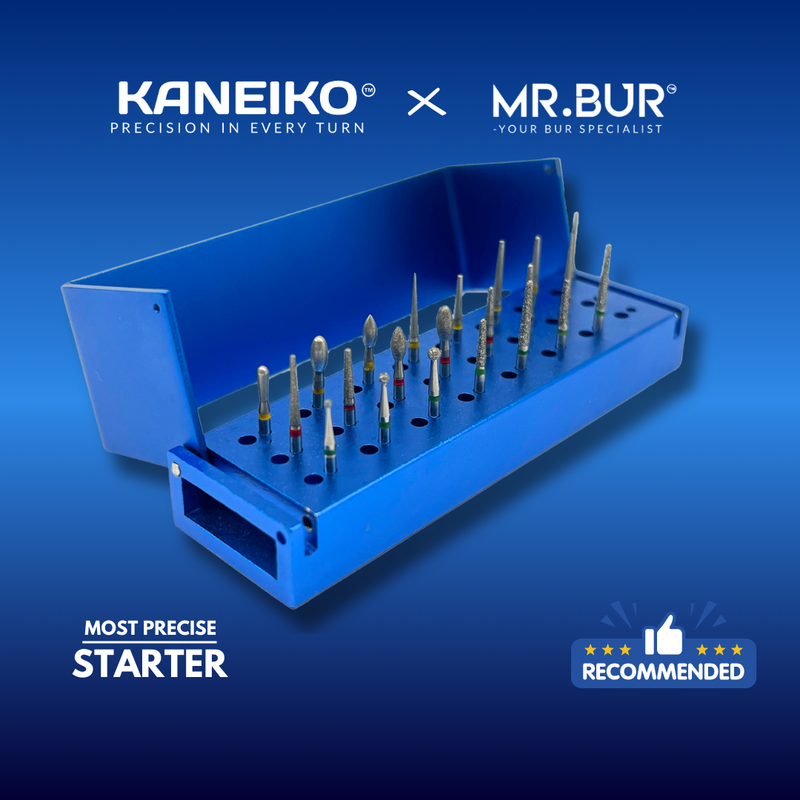

Kaneiko and MR.Bur Bur Bundles

Kaneiko bur bundles combine compatible handpiece systems with selected MR.Bur dental burs for procedure-based workflows.

Available bur selections may support:

• Crown and bridge preparation

• Cavity preparation

• Veneer preparation

• Restorative cutting

• Finishing and polishing

• Surgical procedures

• Interproximal reduction

• Laboratory adjustment


Matching the correct bur shank with the correct handpiece is essential. High-speed handpieces generally use FG burs, low-speed contra-angle handpieces use CA burs, and straight handpieces generally use HP burs.

Supporting Modern Dental Workflows

Kaneiko products are organised into specialised collections so dentists can identify the handpiece system required for a specific procedure.

High-speed handpieces support rapid cutting during crown preparation, cavity preparation and restorative procedures. Low-speed contra-angle and straight handpieces support finishing, polishing, trimming and prosthetic adjustment.

Electric contra-angle handpieces provide controlled speed-increasing performance for restorative preparation. Surgical and implant contra-angle handpieces support procedures requiring controlled torque, access and irrigation. Reciprocating handpieces provide specialised movement for compatible interproximal reduction and finishing instruments.

Quick couplings and air motors complete the handpiece connection system, while bur bundles help clinicians select rotary instruments for the intended clinical workflow.

Built Around Daily Clinical Requirements

Dental professionals use handpieces repeatedly throughout the working day. Product selection should therefore consider more than maximum power or rotational speed.

Important clinical considerations include:

• Head size and posterior access

• Bur compatibility

• Chuck security

• Water spray pattern

• Fibre-optic or LED visibility

• Noise and vibration

• Motor or coupling compatibility

• Sterilisation requirements

• Cartridge or maintenance design

• Intended procedure


Kaneiko presents model-specific specifications so clinics can compare products according to their clinical and equipment requirements.

Product Compatibility and Maintenance

Correct compatibility is essential for safe and predictable handpiece operation.

Before using a Kaneiko product, confirm:

• The handpiece-to-motor or handpiece-to-coupling connection

• The required bur shank

• Maximum operating speed

• Irrigation configuration

• Lighting compatibility

• Sterilisation instructions

• Lubrication and maintenance requirements


Maintenance is model dependent. Serviceable handpieces should follow the lubrication, cleaning and cartridge instructions provided for that product.

Kaneiko integrated high-speed models with fixed M4 connections are different. These economical, non-serviceable handpieces should not be lubricated, dismantled or internally repaired. A faulty integrated handpiece should be removed from use and replaced.

Why Choose Kaneiko?

Kaneiko develops dental handpiece systems for clinicians seeking clear product specifications, practical compatibility and controlled clinical performance.

The range includes products for:

• High-speed restorative cutting

• Low-speed finishing and polishing

• Electric crown preparation

• Surgical access

• Implant placement

• Reciprocating interproximal reduction

• Dental-unit connection

• Procedure-specific bur selection


Selected official website purchases may include additional accessories or replacement components according to the product listing. Product-specific guides and videos are provided where available to support correct use and maintenance.

Kaneiko is designed as a connected dental handpiece range rather than a single instrument category, helping clinics select compatible handpieces, motors, couplings and dental burs for different workflows.

Frequently Asked Questions

What is Kaneiko?

Kaneiko is a Japanese dental handpiece brand operated by KANEIKO INTERNATIONAL CO., LTD. The brand offers high-speed handpieces, low-speed and electric contra-angle handpieces, surgical and implant handpieces, dental air motors, quick couplings and selected bur bundles.

What types of dental handpieces does Kaneiko offer?

Kaneiko offers integrated high-speed handpieces, quick-coupling high-speed handpieces, 1:1 contra-angle handpieces, straight handpieces, 1:5 electric contra-angle handpieces, 1:4:2 surgical handpieces, 20:1 implant handpieces and 4:1 reciprocating contra-angle handpieces.

Which Kaneiko handpiece is suitable for crown preparation?

Kaneiko high-speed air-turbine handpieces and 1:5 electric contra-angle handpieces may be used for crown preparation, depending on the clinician’s dental-unit setup, preferred cutting system and selected bur.

Which handpiece is suitable for implant procedures?

Kaneiko 20:1 implant contra-angle handpieces are designed for low-speed, high-torque implantology procedures with compatible implant motors and irrigation systems.

Are Kaneiko quick couplings compatible with other brands?

Kaneiko offers selected quick-coupling configurations compatible with systems including KaVo, NSK, Bien-Air, Sirona and W&H. Compatibility must be confirmed using the exact handpiece model, coupling type, hose connection and lighting configuration.

What is the difference between an air motor and an electric micromotor?

A dental air motor uses compressed air to power compatible low-speed E-type handpieces. An electric micromotor uses an electrical drive system and is required for compatible electric contra-angle handpieces such as speed-increasing 1:5 models.

Which burs are compatible with Kaneiko handpieces?

Bur compatibility depends on the handpiece. High-speed air-turbine handpieces generally use FG burs, 1:1 and implant contra-angle handpieces generally use compatible CA burs or implant drills, and straight handpieces generally use HP burs. Always check the individual product specification.

Do all Kaneiko handpieces have the same features?

No. Cutting power, head size, water spray, lighting, chuck system, bearings, coating, connection and maintenance requirements vary by model. Product-specific specifications should be reviewed before purchase.

Explore Kaneiko Products

Browse Kaneiko dental handpieces, air motors, quick couplings and bur bundles designed for restorative dentistry, prosthodontics, oral surgery, implantology, finishing, polishing and dental laboratory workflows.
